Description

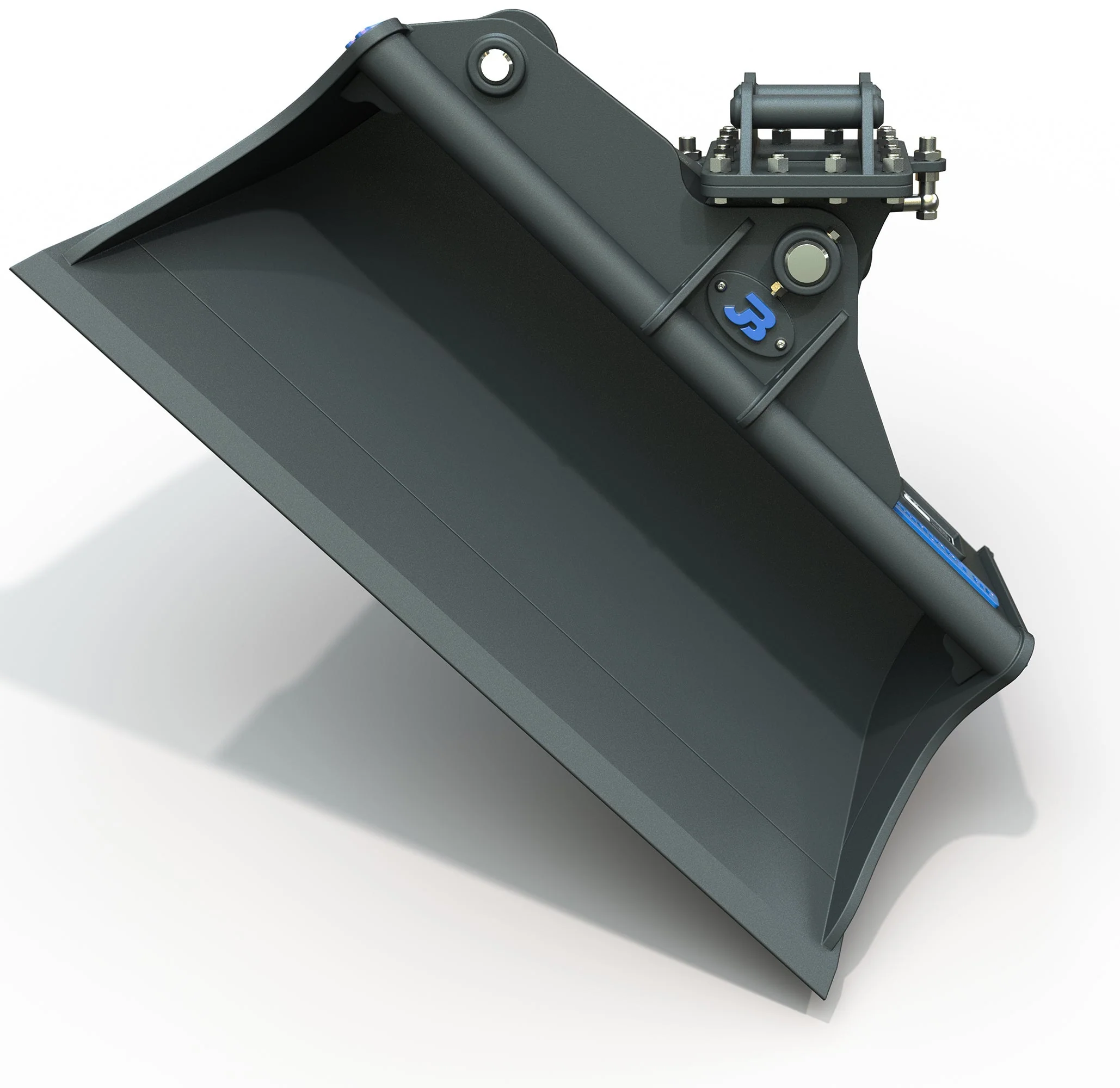

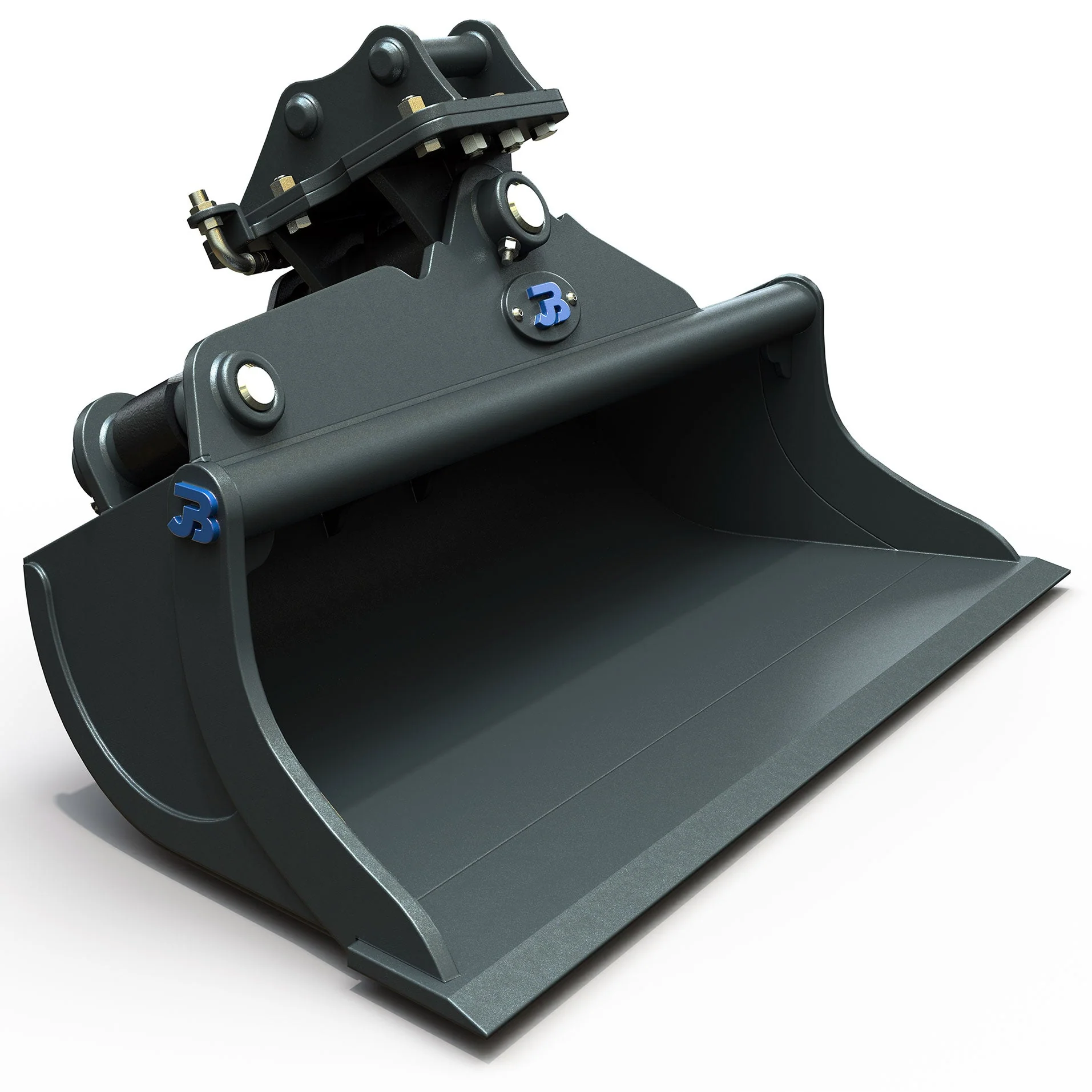

A quality excavating and landscaping attachment for mini and micro excavators. This Scandinavian style hydraulic tilt bucket features a high quality hydraulic cylinder, hardened HB400 cutting edges and high tensile steel throughout.
Scandinavian tilt buckets are increasingly popular due to their profiled and angular design, which both increases bucket volume and enables greater accuracy when pouring material at an angle or working against obstacles such as a fence or wall.
This bucket can often be supplied from pre-fabricated stock to minimise the delivery and lead time.
Bolt on Headstock – Pins will be bolted onto the top (as shown). This is handy if you’re considering changing excavator in the future or using between multiple excavators. Additional charge applies.
Both single and twin cylinder Scandinavian are pre-installed with on board hydraulic pipe work and two simple, easy to reach bulkhead BSP fittings adjacent to the linkage.
Please Note: This attachment is not supplied with hoses to connect from the bucket back to the excavator, these can be ordered separately.
Includes standard 2 pin excavator linkage
Check valve for cylinder stability
Optional bolt on headstock upgrade
Hydraulic ports positioned by the linkage for minimal damage potential
1 or 2 cylinder options on most hydraulic tilt buckets
Standard BSP hydraulics
Ideal for landscaping
Scandinavian design
45 degree tilt in both directions
