Description

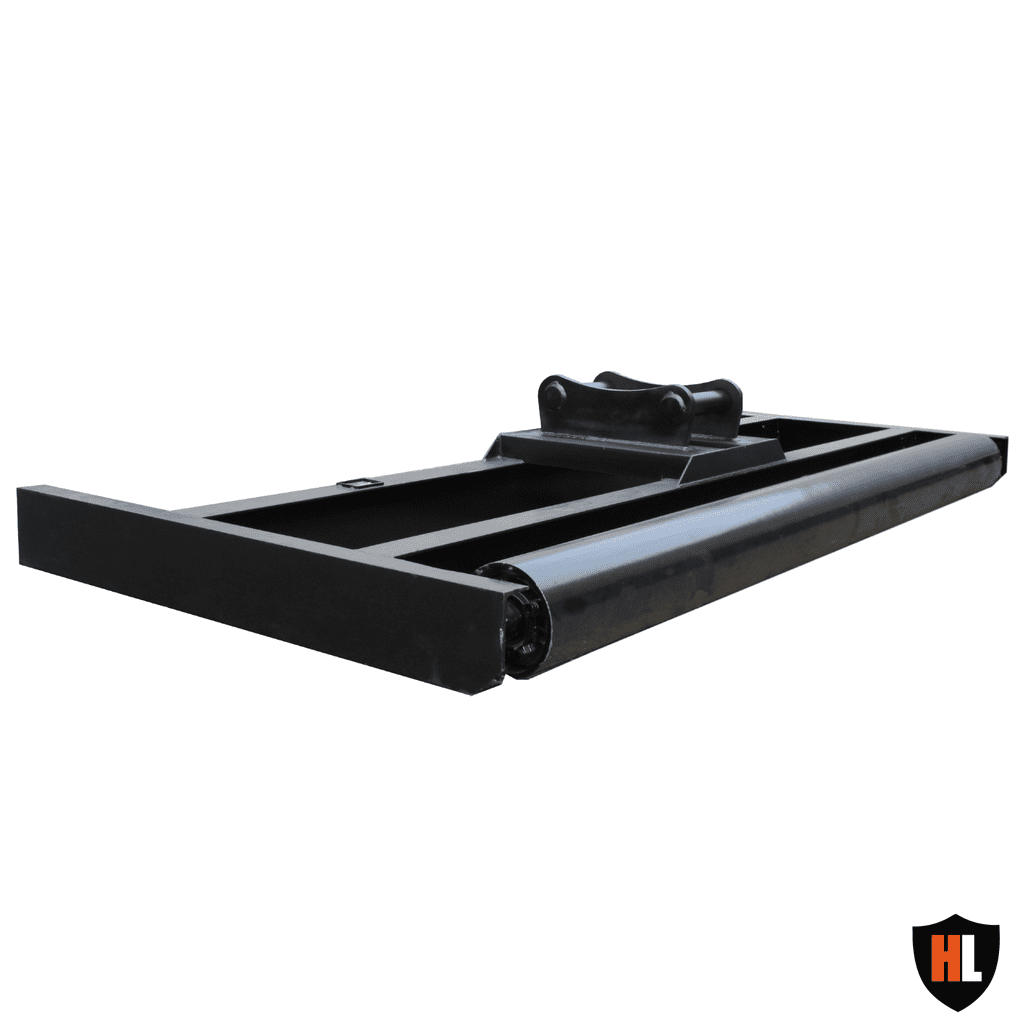

Hardlife’s new grading beam is the perfect tool for levelling, compacting and finishing any loose ground surfaces. Our grading beams are available in four widths from 1.5m to 3m with link and roller included. Our grading beams can be made to suit any machine.
Rather than trying to use a ditch grading bucket or having to bring in additional machinery to grade surfaces, grading beams are setup to level off and compact your ground quickly and effectively. With a wide steel frame, you can easily pull material to where you need it and then the heavy steel roller finishes the job off with a smooth and compact finish.
Grading beams are a multifunctional grading attachment, best used under a tiltrotator. With the grading beam placed flat on the ground, it can be used to spread and level material using the horizontal beams, with the roller following to compact it down. With good operation this can all be done in one motion, so jobs like spreading road planings or gravel can be done quicker and with ease. Being wider than a ditching bucket and with the dual functions, this makes it a more efficient choice for handling and grading crush, type 1 and planings.
Key Features
Roller Bearings
Our grading beams are fitted with two housed roller bearings. They are sealed and pre-greased, with integral shaft locking and can allow the tube roller to spin freely even when under pressure.
Structure
For a strong base, the grading beam is made up from C channels and I beams, some of the most commonly seen structural forms, which ensure it will maintain its shape over time.
Supplied to suit your machine
Our grading beams are available with any linkage required to fit your excavator. Whatever you need, we can fabricate it. Whether it’s a going on a quick hitch, requires a direct mount setup, S-link, Klac, Morin, Harford® Safelock, or anything else. Our grading beams are available from stock and we usually just need a few days to fabricate the linkage to suit your machine. Contact us to check our current lead time.
Prices from:
Grading Beam 010 1500 mm £890.00 + Vat
Grading Beam 020 2000 mm £1,790.00 + Vat
Grading Beam 060 2500 mm £1,990.00 + Vat
Grading Beam 100 3000 mm £2,290.00 + Vat
Shipping Information
Worlwide pallet, road, sear and air shipping is available on all the products across the Bucket Warehouse range, to any country worldwide.
Please see information on shipping to the UK, Europe & Rest of World below:
UK & International Pallet Shipping
Used for all buckets, rakes, tracks and grapples with order quantity under 5 units.
UK – Pallet – £65 on most orders using one pallet.
UK – Scotland Postcodes AB, DD, IV, KW, PA, PO30-41 – £115 on most orders using one pallet
Europe & International – We ship internationally every week at very competitive rates. Please Contact Us before placing an order with your full delivery details and products for purchase, one of our team will get back to you promptly with delivery charged.
Lead times on orders
The lead time on your order will vary depending on immediate stock availability. We usually carry stock on popular 13/14 tonne and 20 tonne products that can be available on next day / 48hr delivery. If not in stock, we aim to have fulfilled your order within 7-10 working days, however this time is not guaranteed and can fluctuate depending on factory lead times at the point of order. If you have any questions concerning lead times, please Contact Us and we will be able to provide you with a more accurate lead time based on our production schedule and endeavour to help in any way possible.
