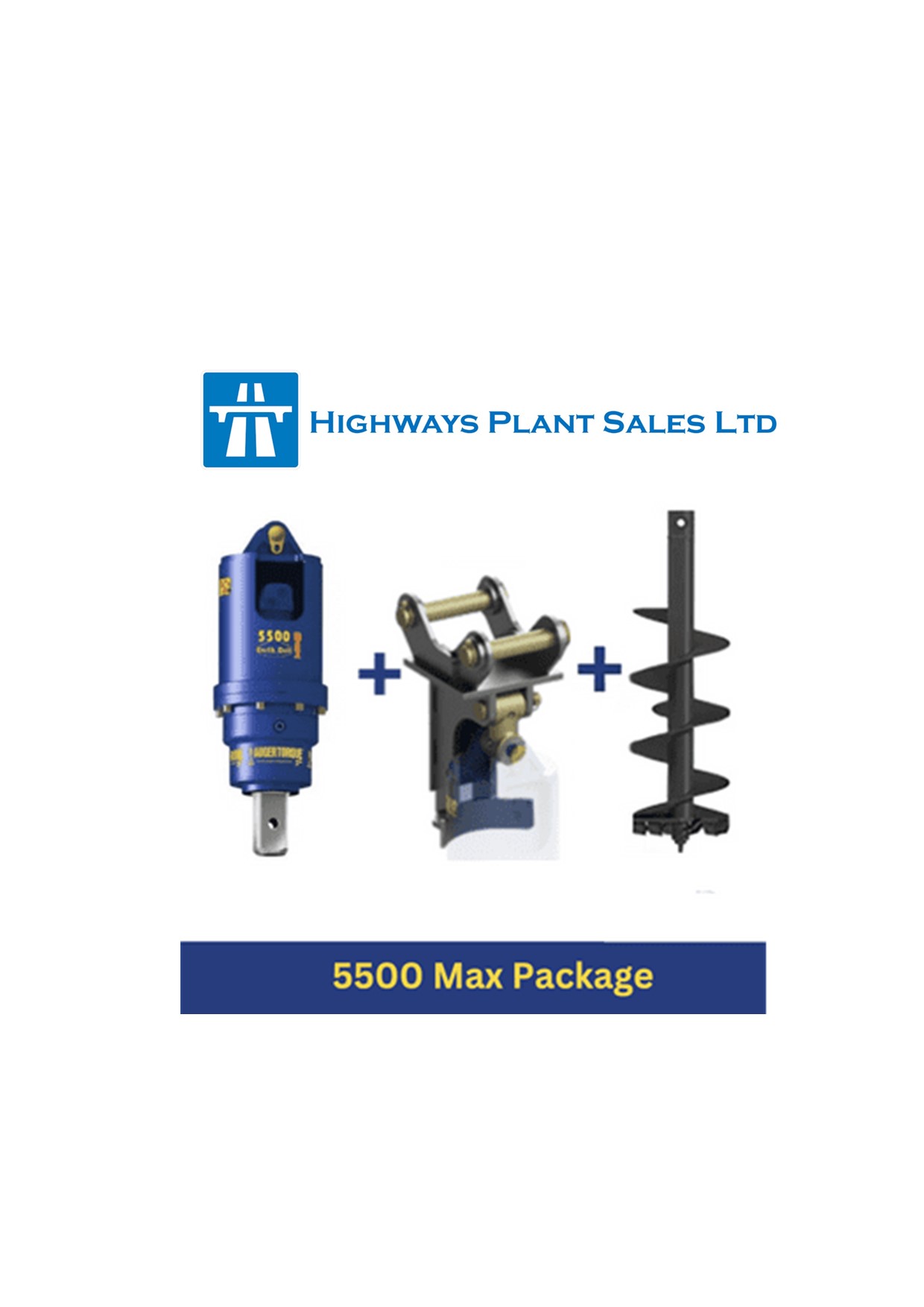

Auger Torque 5500MAX Package c/w Cradle Hitch and Auger (5-6t Excavators)

£3,040.00

Included in our package deal:

5500MAX Earth Drill

Double Pin Cradle Hitch – Fabricated to suit your excavator

Tungsten Rock Auger up to 450mm Diameter

Category:

Description

Our special Auger Torque Package Deal suitable for excavators from 5ton to 6ton. We are offering an all-in-one package deal ideal for small excavators in the 5ton to 6ton range. The 5500MAX Earth Drill is proven to work on all excavators from 5-6ton



Our special Auger Torque Package Deal suitable for excavators from 5ton to 6ton. We are offering an all-in-one package deal ideal for small excavators in the 5ton to 6ton range. The 5500MAX Earth Drill is proven to work on all excavators from 5-6ton

Included in our package deal:

5500MAX Earth Drill

Double Pin Cradle Hitch – Fabricated to suit your excavator

Tungsten Rock Auger up to 450mm Diameter

This package deal would be ideal for the following excavators (as a guideline):

JCB 48Z
JCB 51R
JCB 55Z
JCB 57C
JCB 65R
JCB 8055
Kubota KX057
Kubota U55
Takeuchi TB250
Takeuchi TB260
Neuson ET65

Any excavator from 5t to 6t weight class

Drive Unit – Auger Torque 5500MAX Earth Drill

High quality hydraulic motors, output shaft bearings which are 50% larger than the nearest competitors comparable drive and the use of only high grade materials mean that your Earth Drill will have a long, reliable service life.

Standard with the 5000-8000MAX series and unique to Auger Torque, the Non-Dislodgement Shaft is a single piece drive shaft assembled top down and locked into the Earth Drill housing. This design guarantees that the shaft will never fall out, making for a safer work environment, not only for the operator but also any surrounding workers. This is a MUST-HAVE FEATURE for any safety conscious company.

Torque is amplified by using the unique Auger Torque planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.

Excavators 4.5T to 6T

Oil Pressure Range: 80 – 260 Bar

Torque Range: 1685 – 5477 Nm

Oil Flow Range: 40-115 lpm

Speed Range: 30 – 87 rpm

Hub Options: 75mm Square

Height: 780 mm

Width: 269 mm

Weight: 108 kg

Hitch Options: Single Pin Hitch/ Double Pin Hitch/ Cradle Hitch

Auger Range: S5

Rec. Drilling Diameter Range: 150 – 750 mm

Download Specification Sheet

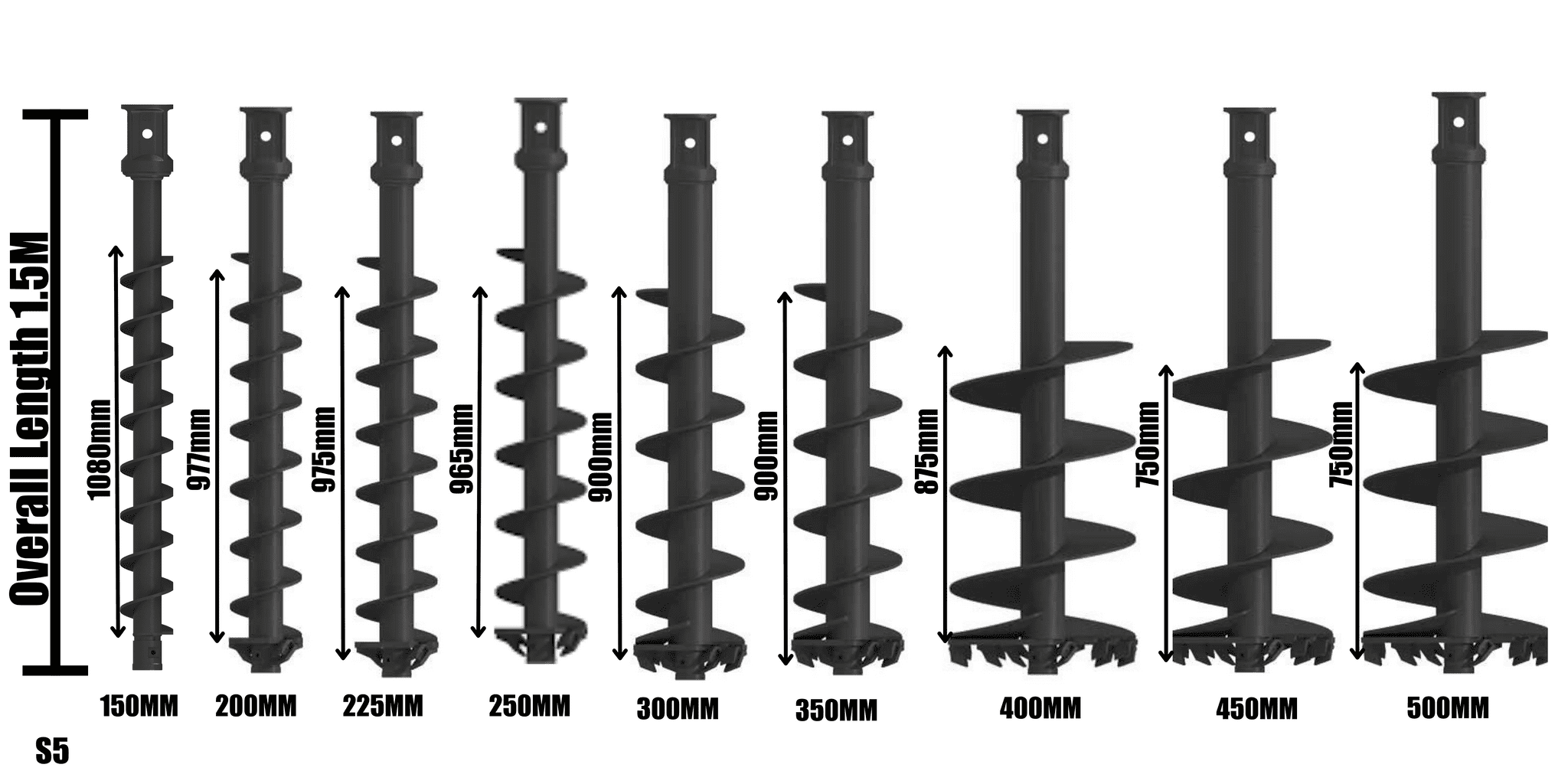

S5 Tungsten Rock Auger

Overall length: 1.5m

Diameter: Up to 450mm

To Suit 5500MAX Earth Drill

Overall Length given includes the auger fitted with wear parts.

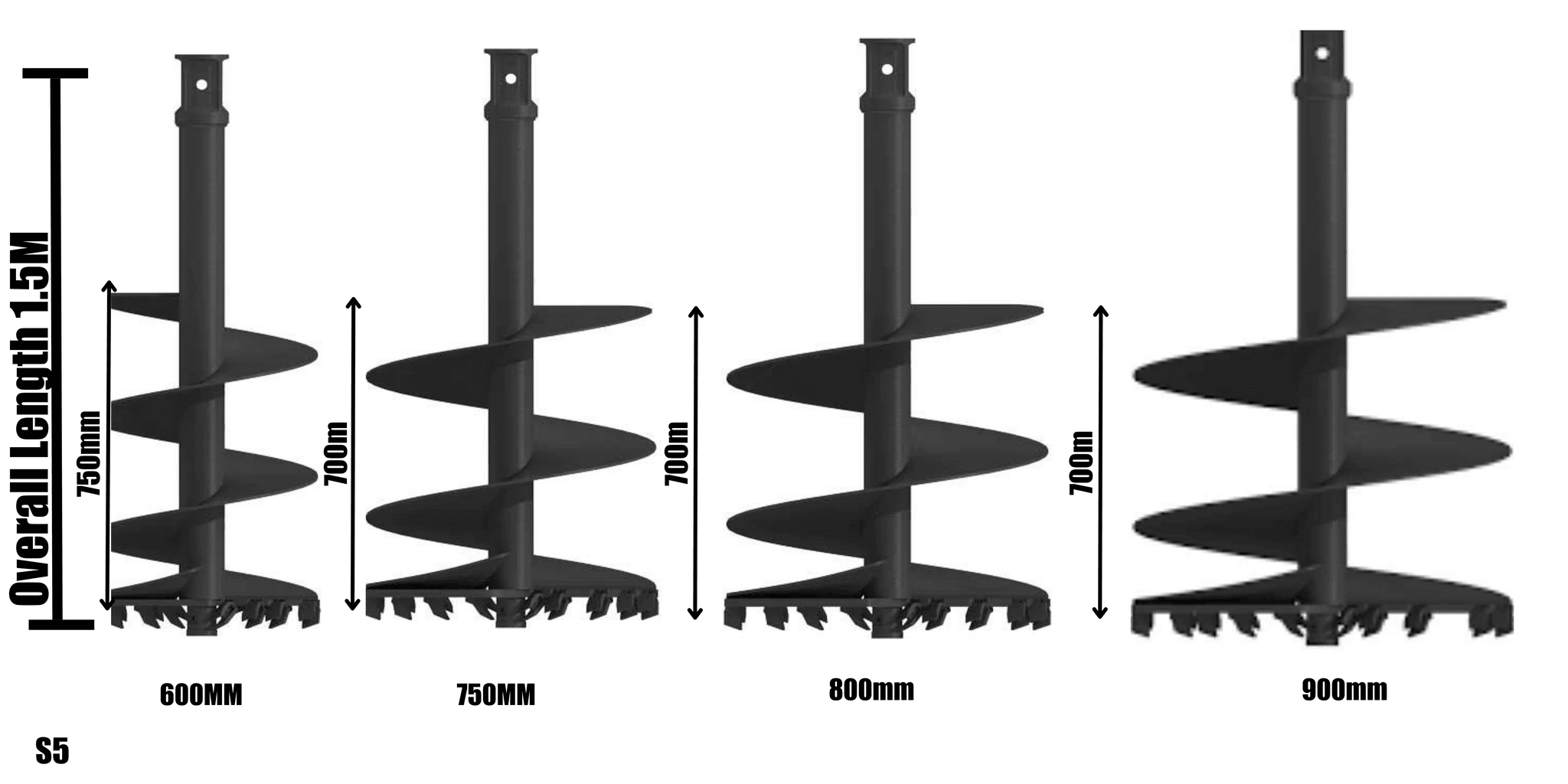

Auger Range: S5

The S5 Range of Augers has been specifically designed for High Flow Skid Steer Loaders, Tele Handlers, Truck Cranes, Backhoes and Excavators up to 8T. S5 Range Augers are available with a number of wearpart combinations, catering from soft grounds all the way to mixed rocky grounds and even permafrost.

All Auger Torque Augers are built from high grade steel and incorporate many features that will allow you to work more efficiently and will make your job easier. Shallow pitch flights ensure they will cut with maximum efficiency and, most importantly keep the spoil on the flights when removed from the hole.

Heavy duty tubes, constant spiral cut as well Auger Torques unique Shock Lock™ Tooth Locking System (Rock Augers excluded), which will guarantee that you will never lose your auger teeth when reversing your auger, have given Auger Torque Augers their industry leading reputation. The standard hub for the S5 range is 75mm Square, however we are able to supply most hub options on the market.

Double Pin Cradle Hitch

The Double Pin Cradle Earth Drill hitch  is supplied in loose pin version to suit standard and quick hitch solutions on most excavators & backhoes. The use of a Cradle hitch is recommended by Auger Torque as it will eliminate Auger swing during dirt shake off, will enable you to safely transport your Earth Drill and Auger on site and will also help you in lining up your holes with precision. No mechanical parts or dampers mean that even if your Earth Drill and hitch have a tough life ahead of them you will not have to worry about costly replacements or breakdowns.

Just like all Auger Torque products only the highest grade steel is used in the fabrication of this style hitch. Please note all hitches are made to order and can sometimes carry a lead time of 3/4 days. Please contact us for availability
