Description

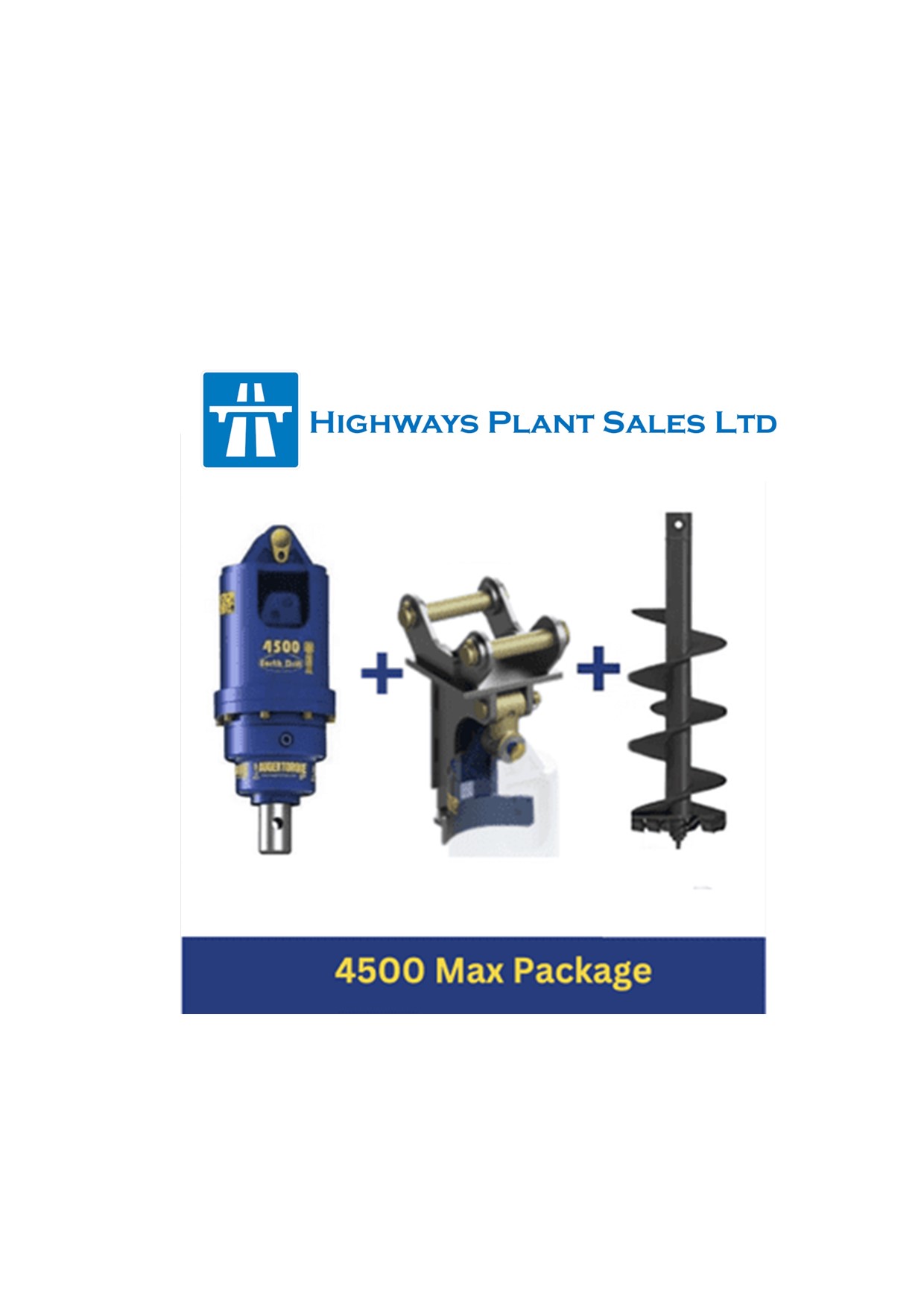

Included in our package deal:
- 4500MAX Earth Drill
- Double Pin Cradle Hitch – Fabricated to suit your excavator

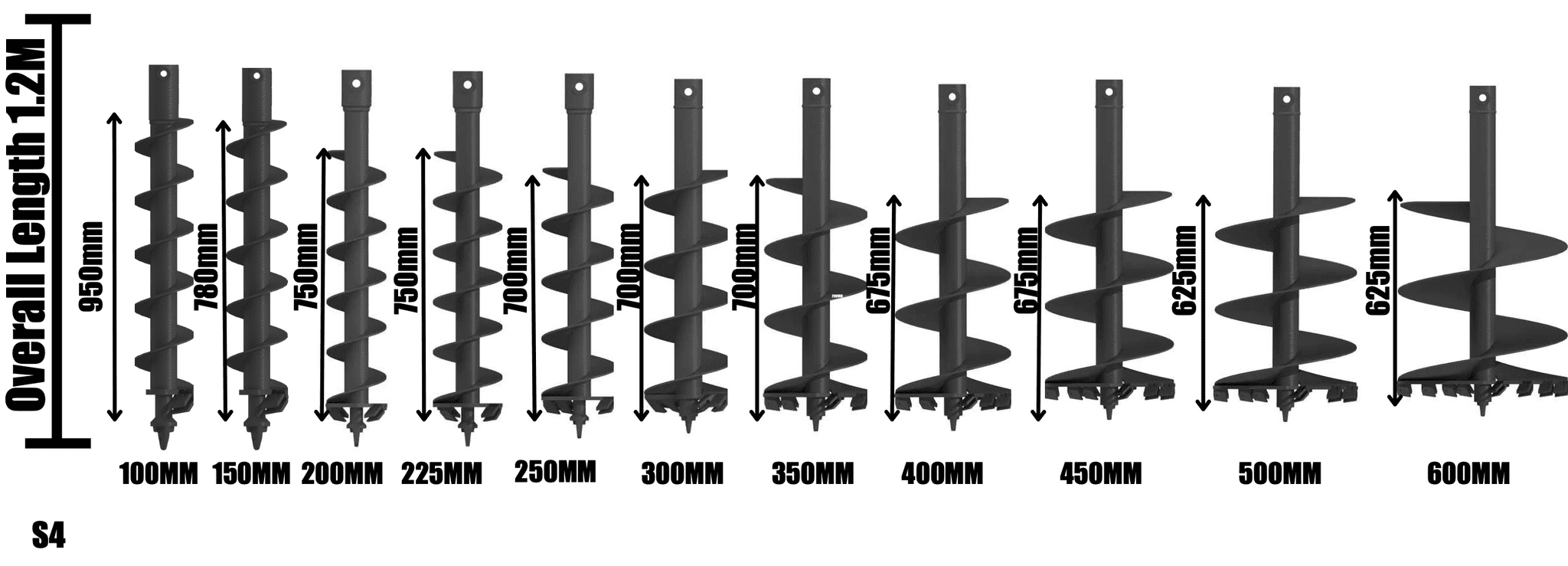

- Tungsten Auger up to 450mm
- Hydraulic Hoses (no couplers included)
Our Auger Torque package deal suitable for excavators from 3ton to 5ton. We are offering an all-in-one auger attachment solution for small excavators in the 3ton to 5ton range.
Included in our package deal:
- 4500MAX Earth Drill
- Double Pin Cradle Hitch – Fabricated to suit your excavator
- Tungsten Auger up to 450mm
- Pair of 1/2″ BSP Hydraulic Hoses – no couplers
All you require is a pair of hydraulic couplings to suit your machine
This package deal would be ideal for the following excavators (as a guideline):
JCB 48Z
JCB 51R
Volvo EC55
Volvo ECR40
Volvo ECR50
Kubota KX042
Kubota U50
Kubota KX037
Takeuchi TB240
Takeuchi TB250
Neuson ET42
Neuson EZ50
Any excavator in the 3t to 5t weight class
Earth Drill Specifications
4500MAX Earth Drill
Oil Pressure Range: 80 – 240 Bar
Torque Range: 1,500 – 4,499 Nm
Oil Flow Range: 50 – 95 lpm
Speed Range: 43 – 81 rpm
Output Shaft: 65mm Round
Height: 665mm
Width: 244 mm
Weight: 75kg
